粉粒體輸送設備
工業級粉粒體輸送機
管式真空輸送器
真空輸送器
粉粒體輸送器
TPYE/型號 | Brief | 簡介 |
NEA 230 | NEA 230 is an entirely pneumatic system for the medium pressure transport of granulates with constant product delivery feed rates. The 2 periods operating cycle resolves the problems typically associated with transporting heterogeneous materials with non-uniform grain shape. The unique technical and structural characteristics of the NEA 230 ensure continuous performance for greater productivity than a conventional venturi pump system. The innovative dual cyclonic valve system cleans the pumps and the respective utilities effectively in one minute, eliminating the downtime otherwise necessary to dismantle the individual components. The compact and versatile structure of the NEA 230 means that it can be installed quickly and easily even on existing, operational production lines. Three regulators complete with pressure gauges (for feed, transport and pinch control) let operators quickly read and, if necessary, recalibrate the pump operating pressure values. | NEA 230是一個藉由氣體作動來輸送顆粒原料,以適當的壓力維持系統運轉。 為了解決輸送不均勻晶粒狀的原料或特殊材質的原料,系統提供了兩階段的操作模式。 NEA 230有獨特的技術和結構上的特殊設計,確保比使用傳統真空泵浦吸取模式更能持續有效,具有更好的生產力。 雙旋風閥系統的設計,可在短時間內清潔輸送機系統的殘渣,不需要拆缷組件清理,造成使用上的延誤。 NEA 230緊密多功能的設計可快速安裝在生產線上,進行粉體輸送。操作員可藉由三個壓力表調節閥(進料、輸送、夾具控制)快速讀取並重新校正泵浦所需的工作壓力值。 |
NEA 430 | NEA 430 is an entirely pneumatic system for the low-pressure transport of high density powders, granulates and polymers capable of continuous, high volume product feed rates. The innovative 4 periods operating cycle ensures uniform, uninterrupted delivery. The unique technical and structural characteristics of the NEA 430 ensure continuous performance for greater productivity than a conventional venturi pump system. The innovative dual cyclonic valve system cleans the pumps and the respective utilities effectively in one minute, eliminating the downtime otherwise necessary to dismantle the individual components. The compact and versatile structure of the NEA 430 means that it can be installed quickly and easily even on existing, operational production lines. Three regulators complete with pressure gauges (for feed, transport and pinch control) let operators quickly read and, if necessary, recalibrate the pump operating pressure values. | NEA 430是一個完全氣動的系統,可低壓輸送高密度粉末、顆粒和混合物。可連續以高容量、高速率的進行粉體輸送。 系統有四個操作模式,確保不間斷的輸送獨特的技術和結構設計,比傳統的真空泵吸取有更高的生產力和持續輸送的性能。 雙旋風閥系統的設計可在極短時間內完成清潔,省卻拆缷組件所需停機的時間, NEA 430優異的性能和結構設計可很快速,容易的安裝在生產線上用。 三個壓力錶調節閥(用於進料、輸送、夾具控制)讓操作者可以快速讀取並在必要時重新校正泵浦的工作壓力值。 |

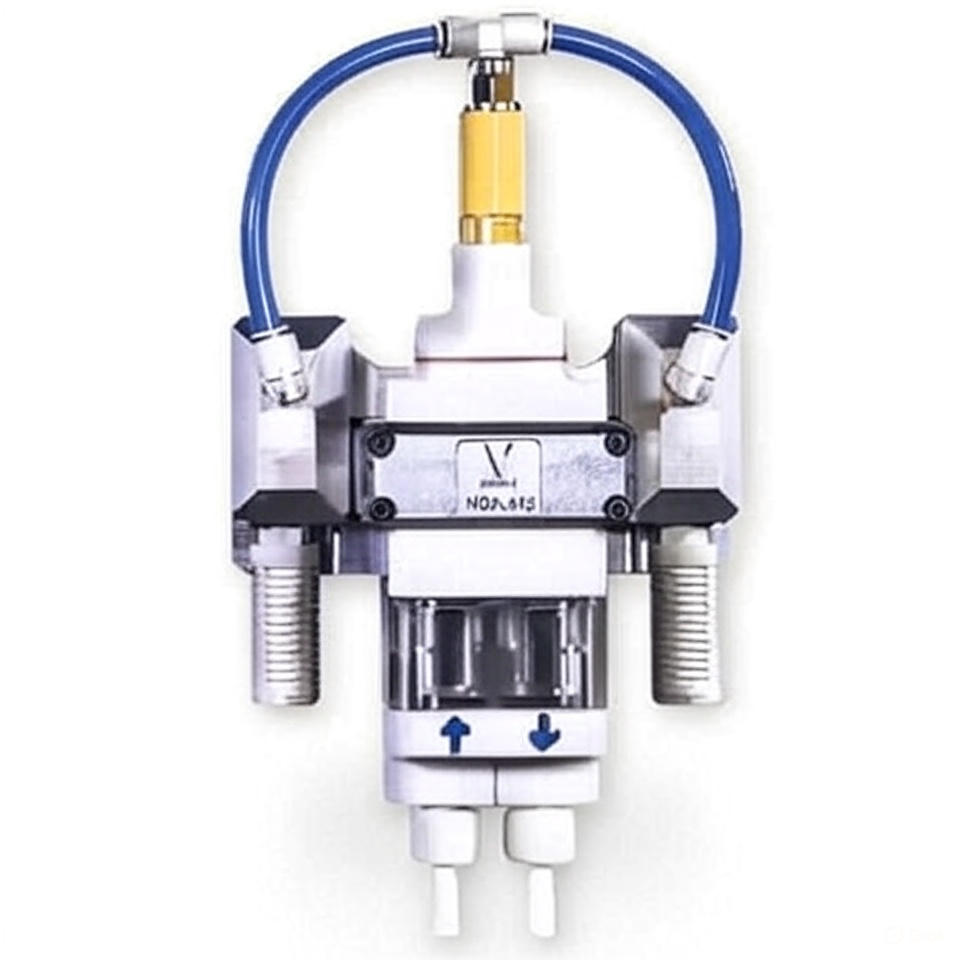

NEA 415 | INNOVATIVE POWDER TRANSPORT SYSTEM DENSE PHASE LOW PRESSURE 4 STROKE OPERATION TRANSPORT : UP TO 600 PULSES/MIN POWDER RECOVERY UP TO 3 MT POWDER SUPPLY FROM 10 MT TO 35 MT POWDER DELIVERY FLOW CONSTANT CONTROL FROM 0 TO 400 GR/MIN POWDER DELIVERY PRESSURE CONSTANT CONTROL FROM 0 TO 5 BAR SUPPLY FLOW CONSTANT CONTROL NO ADDITIONAL AIR NEEDED IN THE SUPPLY UNIT INTEGRATED SYSTEM ALLOWS TO INVERT POWDER FLOW PRODUCT CHANGE IN LESS THAN 30 SEC. | 創新的粉末輸送系統密相低壓設計 四衝程操作 傳輸:高達 600 脈衝/分鐘 粉末回收量高達 3 MT 粉末供應從 10 MT 到 35 MT 粉末輸送流量恆定控制從 0 到 400 GR/MIN 輸送壓力恆定控制從 0 到 5 BAR 供應流量恆定控制 供應單元無需額外的空氣 集成系統允許反轉粉末流動 不到 30 秒即可更換產品。 |
TROLLEY | Verne Technology has designed a fully pneumatic trolley to cater effectively and simply to the production needs of its clients. This versatile trolley allows systems and utilities to be transported simply into work environments in compliance with the ATEX directive. The NEA trolley is specifically constructed to allow the quick and easy installation of the Control Panel or of NEA 230 and NEA 430 transport systems. ●Wheeled structure for carrying containers of raw materials (boxes or drums) ●Base for mounting containers with integrated pneumatic vibrator, managed by our Control Panel ●Fluidised bed powder feeder kit managed by our Control Panel | Verne Technology 設計了一款全氣動小車,以有效和簡單地滿足客戶的生產需求。 這款多功能手推車允許將系統和實用程序簡單地運輸到符合 ATEX 指令的工作環境中。 NEA 手推車有專門構造,可以快速輕鬆地安裝控制面板或 NEA 230 和 NEA 430 運輸系統。 ●用於運送原材料容器(箱或桶)的輪式結構 ●用於安裝帶有集成氣動振動器的容器的底座,由我們的控制面板管理 ●由我們的控制面板管理的流化床送粉器套件 |
TPYE/型號 | Brief | 簡介 |
NEA 230 | NEA 230 is an entirely pneumatic system for the medium pressure transport of granulates with constant product delivery feed rates. The 2 periods operating cycle resolves the problems typically associated with transporting heterogeneous materials with non-uniform grain shape. The unique technical and structural characteristics of the NEA 230 ensure continuous performance for greater productivity than a conventional venturi pump system. The innovative dual cyclonic valve system cleans the pumps and the respective utilities effectively in one minute, eliminating the downtime otherwise necessary to dismantle the individual components. The compact and versatile structure of the NEA 230 means that it can be installed quickly and easily even on existing, operational production lines. Three regulators complete with pressure gauges (for feed, transport and pinch control) let operators quickly read and, if necessary, recalibrate the pump operating pressure values. | NEA 230是一個藉由氣體作動來輸送顆粒原料,以適當的壓力維持系統運轉。 為了解決輸送不均勻晶粒狀的原料或特殊材質的原料,系統提供了兩階段的操作模式。 NEA 230有獨特的技術和結構上的特殊設計,確保比使用傳統真空泵浦吸取模式更能持續有效,具有更好的生產力。 雙旋風閥系統的設計,可在短時間內清潔輸送機系統的殘渣,不需要拆缷組件清理,造成使用上的延誤。 NEA 230緊密多功能的設計可快速安裝在生產線上,進行粉體輸送。操作員可藉由三個壓力表調節閥(進料、輸送、夾具控制)快速讀取並重新校正泵浦所需的工作壓力值。 |
NEA 430 | NEA 430 is an entirely pneumatic system for the low-pressure transport of high density powders, granulates and polymers capable of continuous, high volume product feed rates. The innovative 4 periods operating cycle ensures uniform, uninterrupted delivery. The unique technical and structural characteristics of the NEA 430 ensure continuous performance for greater productivity than a conventional venturi pump system. The innovative dual cyclonic valve system cleans the pumps and the respective utilities effectively in one minute, eliminating the downtime otherwise necessary to dismantle the individual components. The compact and versatile structure of the NEA 430 means that it can be installed quickly and easily even on existing, operational production lines. Three regulators complete with pressure gauges (for feed, transport and pinch control) let operators quickly read and, if necessary, recalibrate the pump operating pressure values. | NEA 430是一個完全氣動的系統,可低壓輸送高密度粉末、顆粒和混合物。可連續以高容量、高速率的進行粉體輸送。 系統有四個操作模式,確保不間斷的輸送獨特的技術和結構設計,比傳統的真空泵吸取有更高的生產力和持續輸送的性能。 雙旋風閥系統的設計可在極短時間內完成清潔,省卻拆缷組件所需停機的時間, NEA 430優異的性能和結構設計可很快速,容易的安裝在生產線上用。 三個壓力錶調節閥(用於進料、輸送、夾具控制)讓操作者可以快速讀取並在必要時重新校正泵浦的工作壓力值。 |
NEA 415 | INNOVATIVE POWDER TRANSPORT SYSTEM DENSE PHASE LOW PRESSURE 4 STROKE OPERATION TRANSPORT : UP TO 600 PULSES/MIN POWDER RECOVERY UP TO 3 MT POWDER SUPPLY FROM 10 MT TO 35 MT POWDER DELIVERY FLOW CONSTANT CONTROL FROM 0 TO 400 GR/MIN POWDER DELIVERY PRESSURE CONSTANT CONTROL FROM 0 TO 5 BAR SUPPLY FLOW CONSTANT CONTROL NO ADDITIONAL AIR NEEDED IN THE SUPPLY UNIT INTEGRATED SYSTEM ALLOWS TO INVERT POWDER FLOW PRODUCT CHANGE IN LESS THAN 30 SEC. | 創新的粉末輸送系統密相低壓設計 四衝程操作 傳輸:高達 600 脈衝/分鐘 粉末回收量高達 3 MT 粉末供應從 10 MT 到 35 MT 粉末輸送流量恆定控制從 0 到 400 GR/MIN 輸送壓力恆定控制從 0 到 5 BAR 供應流量恆定控制 供應單元無需額外的空氣 集成系統允許反轉粉末流動 不到 30 秒即可更換產品。 |
TROLLEY | Verne Technology has designed a fully pneumatic trolley to cater effectively and simply to the production needs of its clients. This versatile trolley allows systems and utilities to be transported simply into work environments in compliance with the ATEX directive. The NEA trolley is specifically constructed to allow the quick and easy installation of the Control Panel or of NEA 230 and NEA 430 transport systems. ●Wheeled structure for carrying containers of raw materials (boxes or drums) ●Base for mounting containers with integrated pneumatic vibrator, managed by our Control Panel ●Fluidised bed powder feeder kit managed by our Control Panel | Verne Technology 設計了一款全氣動小車,以有效和簡單地滿足客戶的生產需求。 這款多功能手推車允許將系統和實用程序簡單地運輸到符合 ATEX 指令的工作環境中。 NEA 手推車有專門構造,可以快速輕鬆地安裝控制面板或 NEA 230 和 NEA 430 運輸系統。 ●用於運送原材料容器(箱或桶)的輪式結構 ●用於安裝帶有集成氣動振動器的容器的底座,由我們的控制面板管理 ●由我們的控制面板管理的流化床送粉器套件 |
